Exhaust D port floor shoes

Proven on flow benches and race engine development.  The raised floor increases velocity and flow.

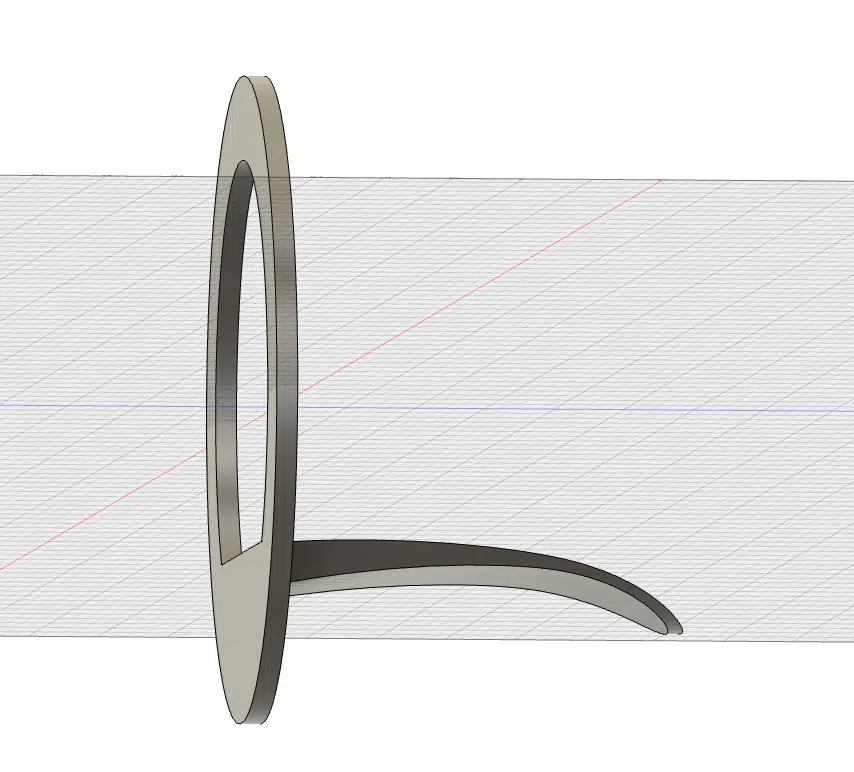

3D CAD work performed by Eric Maas.

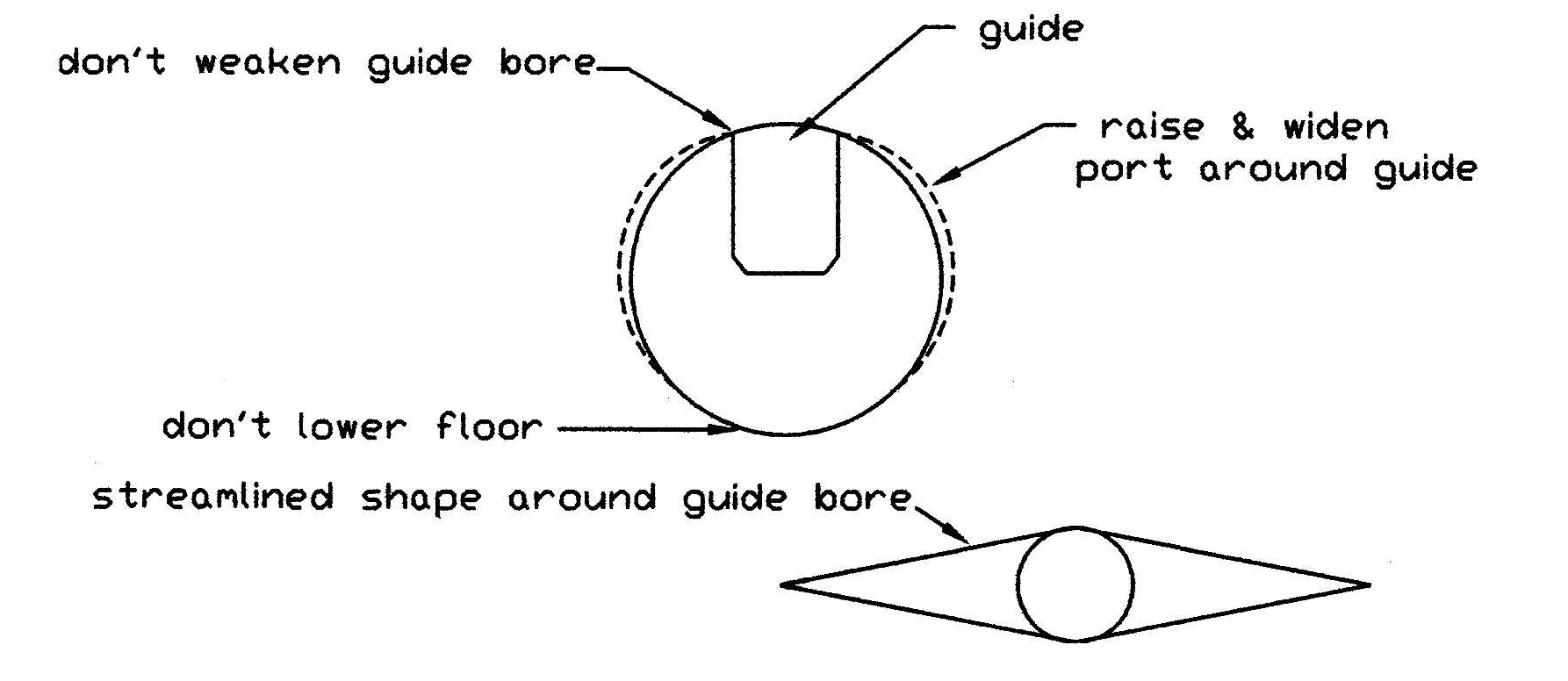

Race and hot street bikes benefit from streamlining the ports approx 1mm wider and higher around each side of the guide similar to the cobrahead shape shown below.
